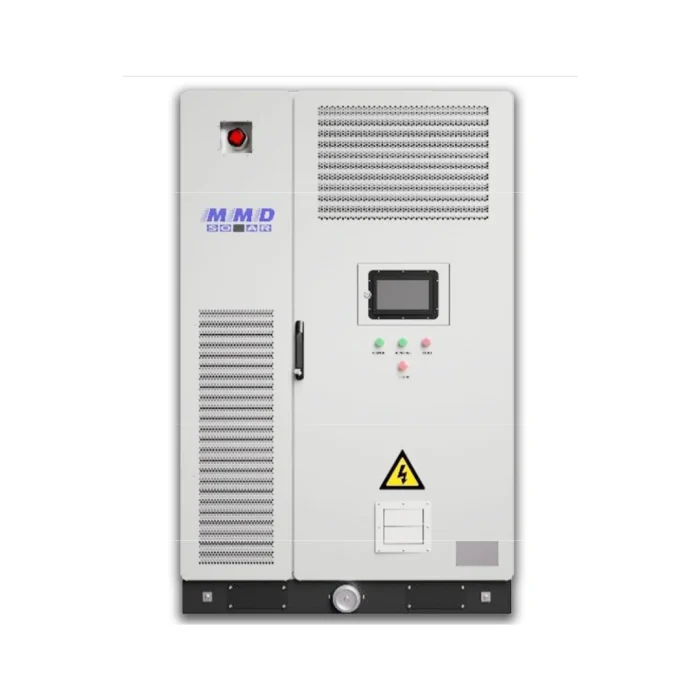

MMD-TG-eBank-241LHYB2
Hiqh Efciency
- Transformer-less design, higher system efficiency.
- Wide AC Grid voltage range.
- Smart Liquild cooling, energy saving.
- Sigle battery string. No circular current.
- Saving battery capacity loose.
Flexible Application
- Modular Design, flexible configuration, small footprint.
- Power module supports“N+1″redundancy.
- All in One design. Easy Installation & maintenance.
Safety& Reliability
- Full function of heat management, fault detection and protection.
- Inbuilt BMS, PCS, MPPT and EMS. Multiple levels of software & Hardware protection.
- Two level fire extinguisher system.
Full Functiona
- Fast reaction of Active/Reactive power adiustment.
- STS Inbuilt Supporting On grid/ off grid transfer without interrupted.
- Standard with EMS function. Peak saving, virtual enlargement,
EPS, New Energy power absorptior.
للحجز سجل بياناتك وهنتواصل معاك في أقرب وقت
شارك على :
Facebook
Twitter
LinkedIn
الوصف
| MODEL | TG-eBank-241LHYB2 |
|---|---|
| Battery Specification | |
| Battery type | LiFePO4 |
| Cell capacity | 3.2V/314Ah |
| PACK config | 1P240S |
| PACK Qty | 5 |
| Rated capacity | 241kWh |
| Rated voltage | 768V |
| Voltage range | 636 ~ 864Vdc |
| Charge/Discharge rate | 0.5C Rated |
| DOD | 95% |
| Cooling system | Liquid Cooling |
| Fire fighting system | Two Level Protection, Standard: Aerosol+HFC-227ea, Optional: PERFLUORO |
| AC Specifications | |
| Rated voltage | 400Vac |
| Voltage Range | 230 / 400Vac |
| Frequency Range | 50/60Hz±2.5Hz (50/60Hz self-adaption) |
| Grid system | 3P+N+PE |
| Isolation transformer | No |
| Rated power | 125kW |
| Peak power | 150kW |
| Rated current | 182A |
| Over load capacity | ≤110% Continuous Running, ≤120% 1Min |
| Power factor | -0.99 ~ +0.99 |
| On grid THD/THDv (Off grid) | <3%, Full load |
| STS module power capacity | 250kW |
| Transfer time (On-off Grid) | ≤20ms |
| PV Specification | |
| Max. PV input voltage | 1000V |
| Max. PV input power | 120kW |
| No. of MPPT/String per MPPT | 2/1 |
| MPPT voltage range | 350 ~ 1000V |
| MPPT current | 200A |
| MPPT efficiency | 99% |
| System Specification | |
| Temperature range | -25°C ~ 65°C, >45°C power derating |
| Storage temperature | -40 ~ 75°C |
| Noise | <70 dB |
| Dimension WDH (mm) | 168013502050 |
| Weight (kg) | 3150kg |
| IP class | IP54 |
| Cooling type | Industry level Liquid cooled |
| EMS | Manual Mode, Peak saving, virtual enlargement, New Energy power absorption, Anti-flow mode, Support remote management and control |
| Communication protocol | Modbus RTU, Modbus TCP, IEC104, MQTT, Etc. |
| Communication port | RS485/RJ45/4G/WIFI |
| Certificates | UN38.3, MSDS, CE-EMC, IEC62619 |
